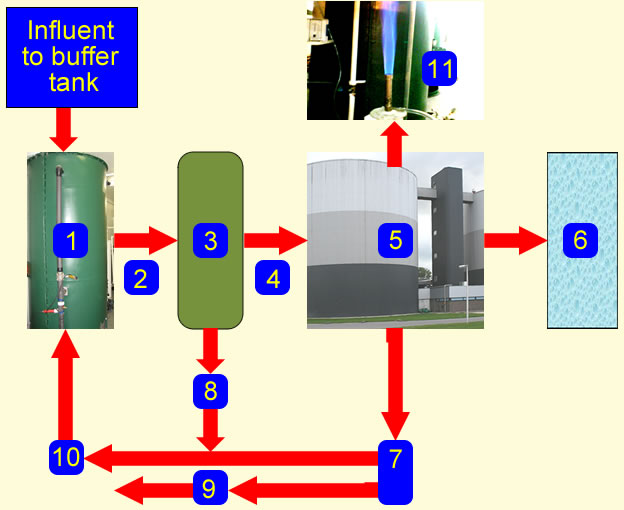

Process Schemeatic

Process Schemeatic

1. Buffer tank – receives influent and acts as a buffer to sudden shock loads or uneven flow characteristics.
2. Transfer pump to ultra sound
3. Ultra sound unit
4. Transfer to reactor
5. Reactor
6. Water discharge
7. Inorganic solids return
8.Sand and grit separated from influent as a result of ultra sound
9. Solids separator – solids to central collection point
10. Water component returns to buffer tank
11. Gas collection point
